How to save a loudspeaker preset for use in an Audac MFA, NOBA8, PMQ, SMA and SMQ amplifier via USB

First, ensure you are using a freshly formatted (FAT32) USB memory stick. There should be no other files present.

From the main Audac Touch screen in the top left corner select “Wave Dynamics”.

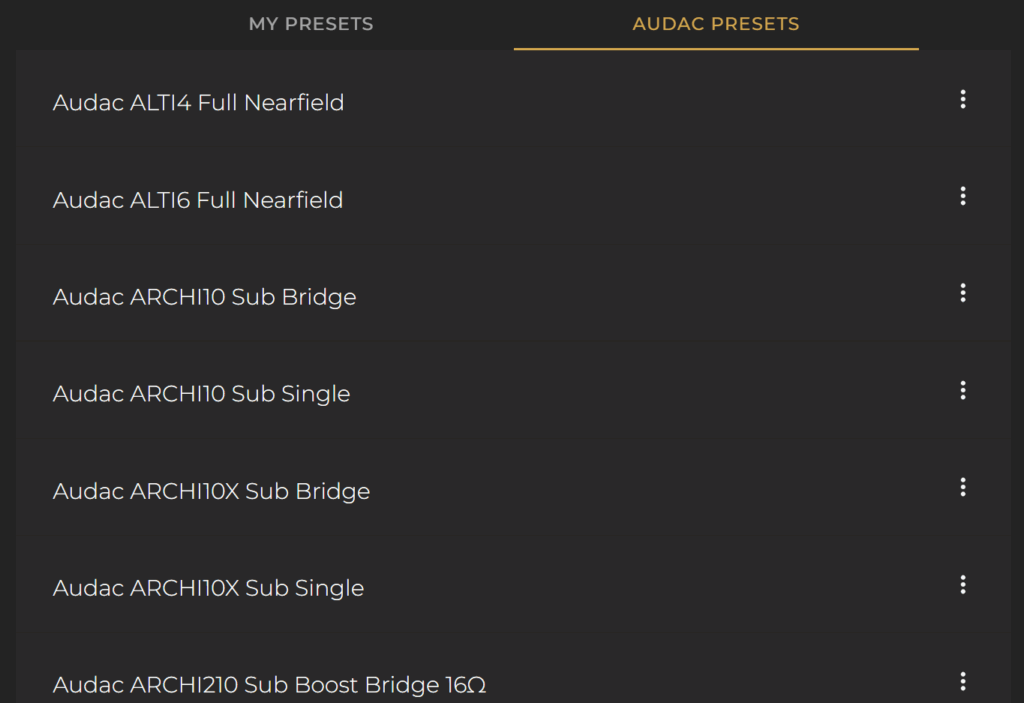

Choose Audac presets

Locate the speaker file you wish to use and selelct the three dots on the right side of the screen

Choose “duplicate”

Click on “my presets” at the top of the screen. The speaker file(s) you selected should be listed here.

From the top right hand corner choose “Export”. A new window will open asking you to choose the amplifier or device. Select your device followed by next.

You can choose to save an entire system configuration file (SOL), or to export a single preset file (SPF). The difference being an SPF file can be loaded into any specific channel whereas an SOL file configures an entire device. Amplifier or device outputs will be listed on the left followed by EMPTY on the right. Select “EMPTY” and a drop down menu will let you choose which loudspeaker file you want to load into that selected channel. Select “next”

Give the SOL file a name by clicking next to the file name and typing something that makes sense to your specific application

Select “next”

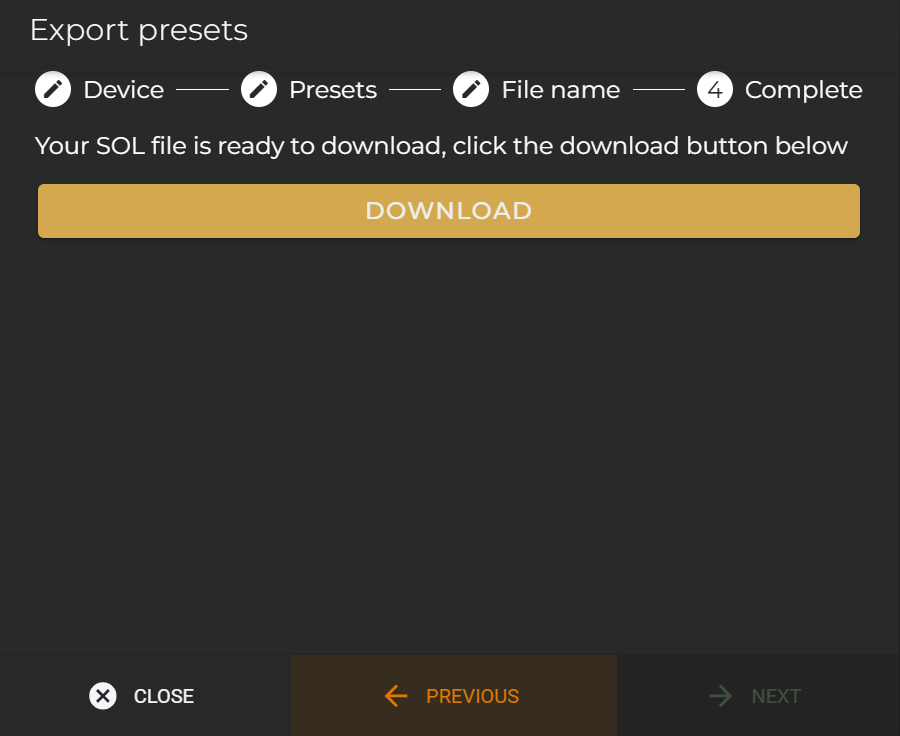

Click the yellow DOWNLOAD button and store the file on the root of the formatted USB stick
